TB20 Plus LED Media Player

TB20 Plus LED Media Player: a NovaStar controller for LED walls up to 650,000 pixels. One switch toggles between scheduled playback and a live HDMI 1.3 feed. It offers 4K decoding, Gigabit Ethernet, Wi-Fi and an optional 4G module. Built for retail, advertising totems, smart city systems and stations.

Category:
Maximum pixel capacity icon

650,000 px

Max pixel capacity

Video decoding icon

4K

Video decoding

Operating system icon

HDMI 1.3

Live input

Ingress protection icon

IP20

Ingress protection

Live or scheduled.
One switch away.

A single switch moves the unit between scheduled playback and a live HDMI feed.

TB20 Plus LED Media Player controller, three-quarter view

Technical specifications

All the details for your project.

Performance

Value

Hardware & power

Value

Processor

ARM Cortex-A53 quad-core, 1.4GHz

Sync methods

NTP, GPS (4G module), RF (RF module)

RAM / Storage

2 GB / 32 GB

Dimensions

141.2 × 120.0 × 33.5 mm

Max pixel capacity

650,000 px

Weight

470.3 g

Max resolution

2048×2048 px (8192×2048 ultra-wide)

Power supply

DC 5V–12V (adapter included)

Video decoding

H.265: 100Mbps/60fps · H.264: 60Mbps/30fps

Max power consumption

15 W

Connectivity

Gigabit + Fast Ethernet, HDMI 1.3, 2×USB, Wi-Fi AP+Station

Operating temp. / humidity

-20°C to +60°C / 5–85% RH

Operating modes

Async (internal) / Sync (HDMI 1.3 live)

Ingress protection

IP20 (indoor use)

TB20 Plus LED Media Player for LED Walls Up to 650,000 Pixels

The TB20 Plus LED Media Player is a NovaStar controller that plays scheduled content and takes a live HDMI 1.3 video feed on LED displays and LED walls of up to 650,000 pixels. A single physical switch moves it between the two modes, in a compact unit of 141.2 × 120.0 × 33.5 mm.

It is built for commercial and smart city installations. In asynchronous mode it plays scheduled content from internal storage. In synchronous mode its HDMI input takes a live feed with automatic scaling, for live broadcasts, events and real-time information alongside scheduled playback.

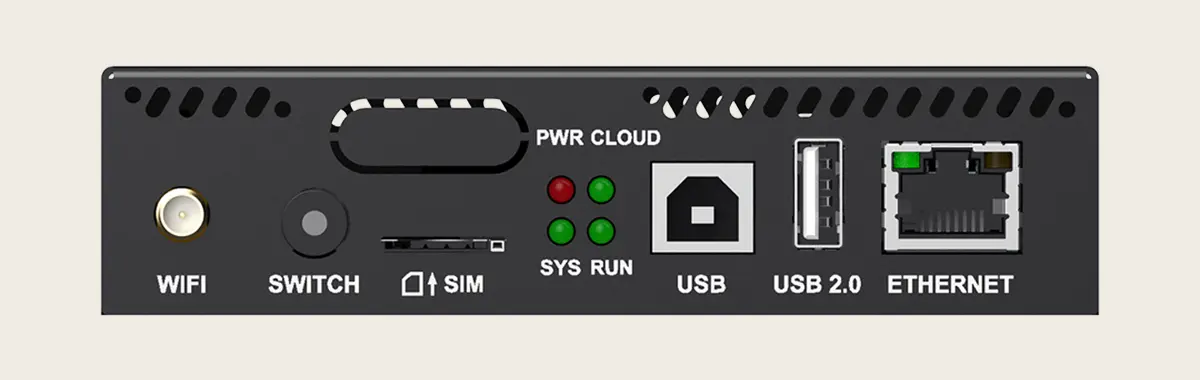

TB20 Plus LED Media Player controller for LED walls, front and rear panels

Key benefits of the TB20 Plus LED Media Player

HDMI 1.3 live input

In synchronous mode a live video source feeds the LED display directly, with automatic scaling.

One-switch mode change

A physical SWITCH button with a green LED indicator toggles between asynchronous (scheduled) and synchronous (HDMI live) mode, with no software reflash required.

650,000 pixel capacity

Standard resolution up to 2048×2048 px, or ultra-wide layouts up to 8192 px wide, decoded via H.265 (up to 100 Mbps, 60 fps) or H.264 (up to 60 Mbps, 30 fps).

Built-in SIM slot for 4G

An optional 4G module adds cellular connectivity and GPS sync where there is no fixed internet. Network priority falls back from wired to Wi-Fi to 4G.

Ready-to-install kit

It ships with a Wi-Fi antenna, power adapter, mounting bracket and screws, so no separate accessory order is needed to get a unit running on site.

Applications for the TB20 Plus LED Media Player

Retail and chain stores

Schedule promotional content across every store, or switch a flagship location to a live HDMI feed for in-store events: one device, both modes.

Advertising totems

4K decoding and wide codec support keep playback smooth on indoor and outdoor advertising totems, managed remotely.

Smart city systems

The optional SIM slot and 4G module bring cellular connectivity and GPS sync to fixed street displays without wired infrastructure.

Stations and airports

The HDMI live input feeds real-time departure and information boards, while scheduled content runs the rest of the day from internal storage.

Certification and support

The TB20 Plus LED Media Player is CE and RoHS certified for sale and use in the EU. It comes with a standard 2-year warranty, extendable to 5 years, and technical support managed directly from Italy. Compare it with the TB10 Plus, TB30, TB50 and TB60, or request information for your project.

TB20 Plus LED Media Player FAQ

What is the difference between the TB20 Plus and the TB10 Plus?

Both share the same processor, pixel capacity and 4K decoding. The TB20 Plus adds an HDMI 1.3 live input for synchronous mode, a SIM slot for 4G connectivity and a wider storage temperature range (-40°C to +80°C). Choose the TB20 Plus when live video input matters.

How do I switch between synchronous and asynchronous mode?

A physical SWITCH button on the unit toggles between the two modes. A green LED indicator confirms when synchronous (HDMI) mode is active.

Does the TB20 Plus support cellular 4G connectivity?

Yes. It has a built-in SIM slot for an optional 4G module. Network priority falls back from wired Ethernet to Wi-Fi to 4G if higher-priority connections are unavailable.

What accessories are included in the box?

Every unit ships with an omnidirectional Wi-Fi antenna, a power adapter, a mounting bracket with screws, and a quick-start guide with certifications.

What multi-screen synchronization methods are supported?

Three: NTP over a standard internet connection, GPS sync (via the optional 4G module) and RF sync (via a dedicated RF module).

Is the TB20 Plus suitable for outdoor installations?

Not on its own: it is rated IP20, for indoor use only. For outdoor deployments, house the controller in a sealed, weatherproof enclosure rated for outdoor use.

What certification, warranty and support does the TB20 Plus include?

The TB20 Plus is CE and RoHS certified for sale and use within the EU. It has a standard 2-year warranty, extendable to 5 years, with technical support managed directly from Italy.

What is the maximum pixel capacity of the TB20 Plus?

Up to 650,000 pixels per unit, at a standard resolution of 2048×2048 px or an ultra-wide layout up to 8192 px in width.

What does the HDMI 1.3 input do?

In synchronous mode, the HDMI 1.3 input takes a live video feed and shows it on the LED display with automatic scaling, for live broadcasts, events and real-time feeds.

What are the power and temperature specifications?

DC 5V to 12V, with the power adapter included and a maximum power consumption of 15 W. Operating temperature is -20°C to +60°C at 5 to 85% relative humidity.
