TB10 Plus LED Media Player

TB10 Plus LED Media Player: a compact NovaStar controller for LED walls up to 650,000 pixels. It offers 4K decoding, Gigabit Ethernet, Wi-Fi and cloud remote control from any internet-connected device. Built for retail, advertising, smart city and multi-site networks.

Category:
Maximum pixel capacity icon

650,000 px

Max pixel capacity

Video decoding icon

4K

Video decoding

Operating system icon

Android 10.0

Operating system

Ingress protection icon

IP20

Ingress protection

Compact power.
Total remote control.

Publish content, control screens and monitor status from any internet-connected device.

TB10 Plus LED Media Player controller, three-quarter view

Technical specifications

All the details for your project.

Performance

Value

Hardware & power

Value

Processor

ARM Cortex-A53 quad-core, 1.4GHz

Sync methods

NTP, GPS (4G module), RF (RF module)

RAM / Storage

2 GB / 32 GB (expandable via USB)

Dimensions

141.2 × 120.0 × 33.5 mm

Max pixel capacity

650,000 px

Weight

465.6 g

Max resolution

2048×2048 px (8192×2048 ultra-wide)

Power supply

DC 5V–12V

Video decoding

1×4K / 3×1080p / 8×720p / 16×480p / 20×360p

Max power consumption

15 W

Connectivity

Gigabit + Fast Ethernet, USB-A, USB-B, Wi-Fi AP+Station

Operating temp. / humidity

-20°C to +60°C / 5–85% RH

Operating system

Android 10.0

Ingress protection

IP20 (indoor use)

TB10 Plus LED Media Player for LED Walls Up to 650,000 Pixels

The TB10 Plus LED Media Player is a NovaStar controller that plays and manages content on LED displays and LED walls of up to 650,000 pixels. It decodes 4K video, offers Gigabit Ethernet and Wi-Fi, and runs Android 10 on an ARM Cortex-A53 quad-core processor at 1.4 GHz, in a compact unit of 141.2 × 120.0 × 33.5 mm.

It is built for integrators and rental companies that need one device for playback, connectivity and remote management. Content can be published and screens controlled from a computer, smartphone or tablet over the internet, with display status monitored in real time, from a single screen to a multi-site network.

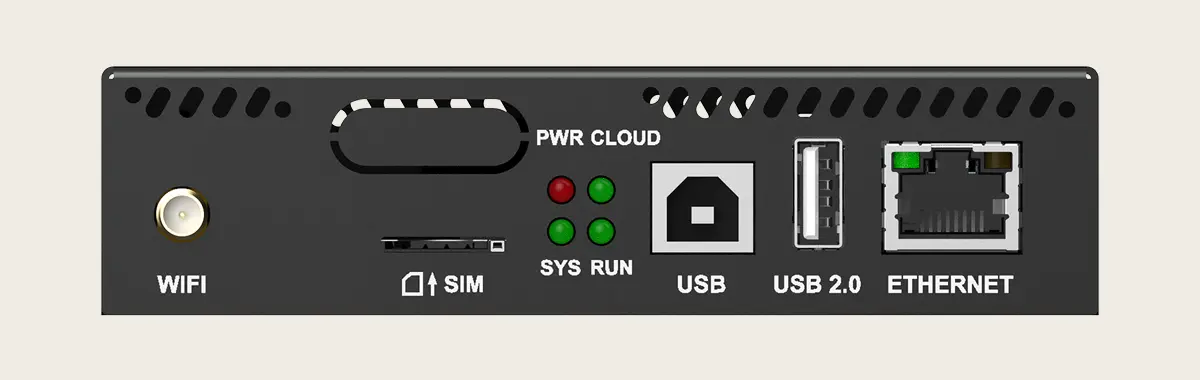

TB10 Plus LED Media Player controller for LED walls, front and rear panels

Key benefits of the TB10 Plus LED Media Player

Cloud-based remote control

Publish content, control screens and monitor status from anywhere, on any internet-connected device. Routine content updates need no site visit.

650,000 pixel capacity

Standard resolution up to 2048×2048 px, or ultra-wide layouts up to 8192 px wide: enough headroom for most commercial and retail installations from a single unit.

Simultaneous 4K decoding

It handles 1×4K, 3×1080p, 8×720p, 16×480p or 20×360p video streams at once, across codecs including H.265, H.264 and VP9.

Multi-screen synchronization

NTP sync over a standard internet connection, or GPS and RF sync with optional modules, for frame-accurate playback across networked displays and multi-site deployments.

Compact, flexible connectivity

Gigabit Ethernet, Fast Ethernet, two USB ports and simultaneous Wi-Fi AP+Station mode cover most installation scenarios in a unit that weighs 465.6 g.

Applications for the TB10 Plus LED Media Player

Retail and point of sale

Content updates for chain stores, point-of-sale screens and shelf displays roll out across every location from a single cloud dashboard, with no store visits and no USB drives.

Advertising and digital signage

4K decoding and wide codec support (H.265, H.264, VP9) keep advertising and signage playback smooth and high-impact, without dropped frames.

Smart city and street furniture

The compact size and IP20 indoor-rated build suit fixed displays and lamp-post-mounted screens with limited space, while keeping full cloud management.

Multi-site networks

NTP, GPS or RF synchronization keeps screens at many locations in frame-accurate sync, all monitored and controlled from one cloud account.

Certification and support

The TB10 Plus LED Media Player is CE and RoHS certified for sale and use in the EU. It comes with a standard 2-year warranty, extendable to 5 years, and technical support managed directly from Italy. Compare it with the TB20 Plus, TB30, TB50 and TB60, or request information for your project.

TB10 Plus LED Media Player FAQ

How does the TB10 Plus differ from the TB30?

The TB30 is the larger controller: dual Gigabit Ethernet with failover, a 4096×4096 maximum resolution (against 2048×2048 on the TB10 Plus), USB 3.0, environmental sensor inputs and direct AC mains power. The TB10 Plus is the compact option, powered by DC 5V to 12V.

What is the maximum pixel capacity of the TB10 Plus?

Up to 650,000 pixels per unit, at a standard resolution of 2048×2048 px or an ultra-wide layout up to 8192 px in width. This is enough for most single-site commercial installations from one controller.

Can it decode 4K video and other streams at the same time?

Yes. The TB10 Plus decodes 1×4K, 3×1080p, 8×720p, 16×480p or 20×360p streams simultaneously, across H.265, H.264, MPEG-4, VP9, MJPEG and AVS2 codecs.

How does cloud remote control work?

Once connected to the internet, the TB10 Plus can be managed from any connected device. Content is published, screens are controlled and display status is monitored in real time from a computer, smartphone or tablet.

What multi-screen synchronization methods are supported?

Three: NTP over a standard internet connection, GPS sync (requires a dedicated 4G module) and RF sync (requires a dedicated RF module), for frame-accurate playback across networked displays.

What is the difference between the USB Type-A and Type-B ports?

The Type-A port supports USB playback, firmware updates and storage expansion up to 128 GB. The Type-B port connects directly to a computer for local configuration.

Is the TB10 Plus suitable for outdoor installations?

Not on its own: it is rated IP20, for indoor use only. For outdoor LED displays, house the controller in a sealed, weatherproof enclosure rated for outdoor use.

What video and image formats are supported?

Video containers: MP4, AVI, RMVB, FLV, MKV and MOV. Image formats: BMP, GIF, JPG, JPEG and PNG up to 4096×2304 px. Bitrate ranges from 6 Mbps (MJPEG) up to 100 Mbps (H.265).

What are the power requirements for the TB10 Plus?

DC 5V to 12V, with a maximum power consumption of 15 W.

What certification, warranty and support does the TB10 Plus include?

The TB10 Plus is CE and RoHS certified for sale and use within the EU. It has a standard 2-year warranty, extendable to 5 years, with technical support managed directly from Italy.
