LED light box bar

LED light box bar

LED light box bar stable and reliable. LED module for light boxe, backlit printing, in addition, sign backlighting.

2 pin male connector for a simple and fast connection.

Each LED bar is supplied with adhesive, there are 4 holes, you can choose the best way to fix it.

  • V Input : 24V DC
  • LED Qty : 3030 12pcs
  • Power: 14.4W
  • Max quantity bars for single line: 5 pz
  • Luminous flux : 1540LM ( 6500K )
  • CRI: Ra = 82.5
  • Lens beam angle: 160°
  • Color CCT: 3000K – 4000K – 6500K
  • IP20
  • Dimensions: 950*18*1.5 mm
  • Warranty: 3 anni
  • Packaging: 12pcs with AWG18 wire

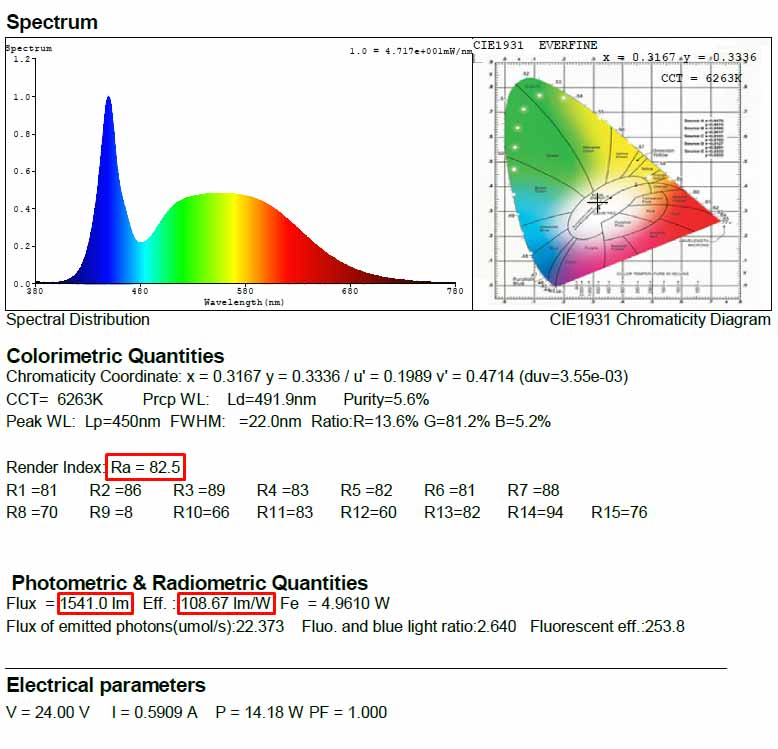

Test report

LED bar test report

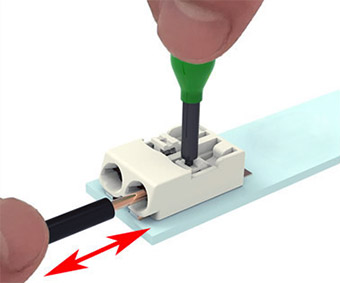

Connection methods

LED bar wiring connection
Wiring connections – Included

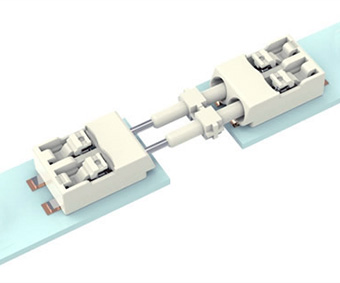

2 pin male connector
2 pin male connector – Optional
LED light box bar
